Product Details
Wall-Mounted Battery

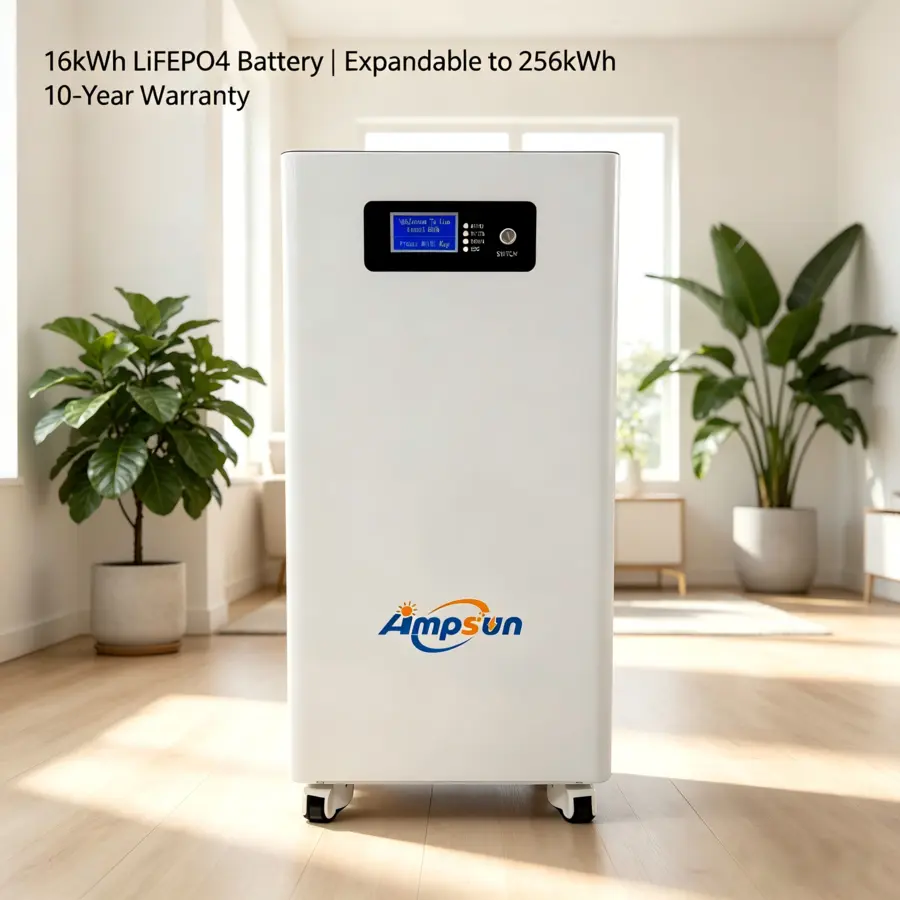

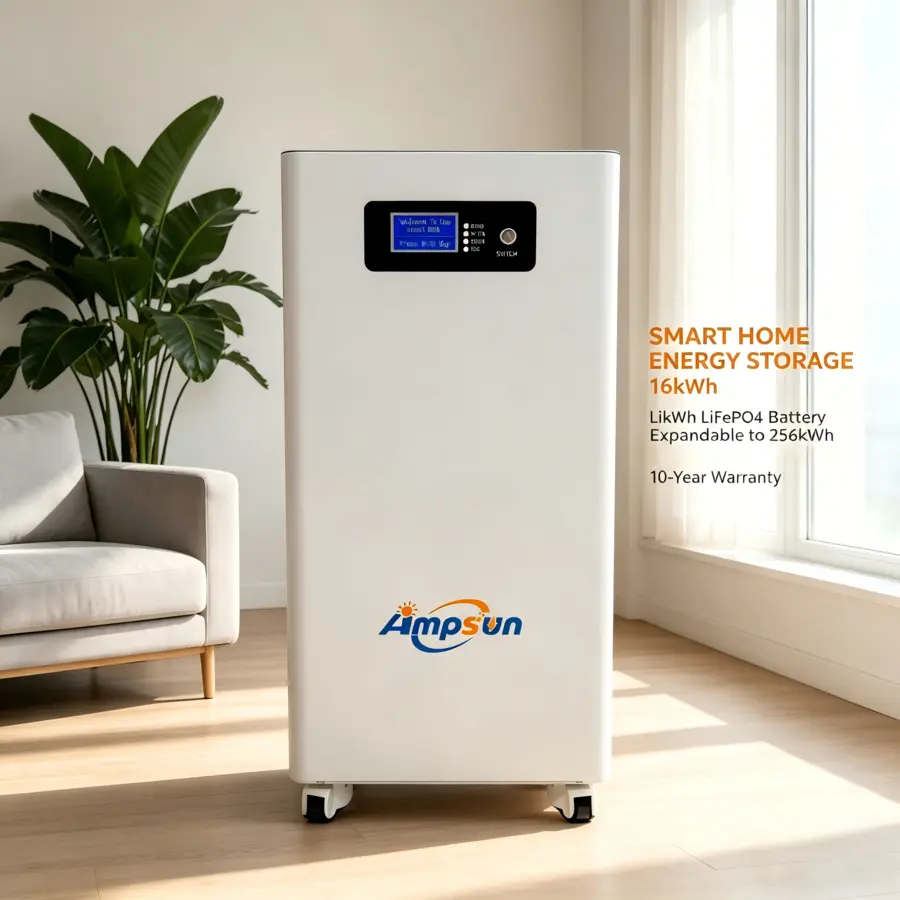

AMP6 16kWh Wall-Mounted Home Energy Storage Battery
High-capacity residential battery for daily solar energy storage and reliable whole-home backup.
- Model
- AMP6-16kWh
- Capacity
- 16kWh / 314Ah
- Voltage
- 51.2V
- Rated Power
- 8kW
Product Description
High-capacity residential battery for daily solar energy storage and reliable whole-home backup.
Built around safe LiFePO4 battery chemistry and an intelligent battery management system, this solution is designed for stable daily cycling and straightforward integration with compatible inverters.
Each project can be configured around the customer load profile, installation environment and communication requirements. OEM and ODM support is available for distributors, installers and project partners.
✓Safe LiFePO4 battery chemistry
✓Intelligent BMS protection
✓OEM and ODM customization
✓Solar and backup power ready
Specification
| Model Number | AMP6-16kWh |
|---|---|
| Usable Capacity | 16kWh / 314Ah |
| Nominal Voltage | 51.2V |
| Battery Type | LiFePO4 (LFP) |
| Cycle Life | 6000+ cycles |
| Warranty | 10 years |
| Rated Power | 8kW |
| Dimensions / Structure | Customized by configuration |
| Communication | CAN / RS485 / Wi-Fi optional |
| Protection | Overcharge, over-discharge, over-current and temperature protection |
| Operating Temperature | -20°C to 55°C |
| Certification | CE / UN38.3 / MSDS |
| Minimum Order Quantity | 1 set |
| Customized Support | OEM / ODM |
| Application | Wall-Mounted Battery |
Company Profile
Beijing AmpSun Energy Co., Ltd. provides integrated residential and commercial energy storage solutions. Our team supports system selection, OEM and ODM customization, production, testing and technical service for customers worldwide.
Integrated Energy SolutionsOEM & ODM SupportStrict Quality ControlGlobal Technical Service
FAQ
Can the system be customized?
Yes. Capacity, appearance, communication protocol and branding can be configured for qualified projects.
What applications does it support?
The system supports solar self-consumption, backup power, peak shifting and on-grid or off-grid energy management.
What technical support is available?
We provide configuration guidance, installation documentation, remote commissioning support and after-sales troubleshooting.
Get In Touch
Tell us your required quantity, destination and application. Our team will reply with a suitable configuration and quotation.
